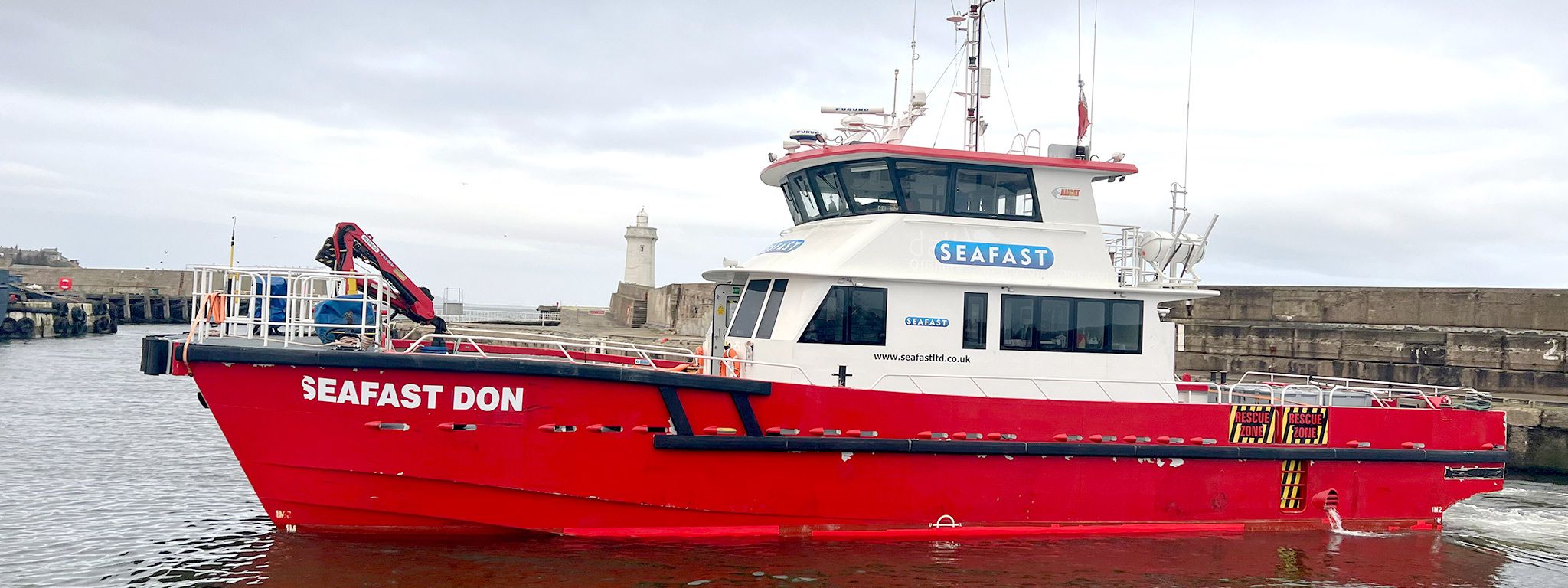

The Seafast Don

23 metre Wind Farm Support Vessel

The Ships Systems include:

Electrically driven Engine room ventilation Supply, Eco Kobola boiler for hot water and central heating including air conditioning, Fire extinguishing STAT-X in engine and tank rooms, built in pressure washer and fuel transfer system.

Accommodation:

Sleeps 2 on port side cabin with shelved out below deck storage starboard side, Galley and Mess Room, Wet Room and Toilet, Lockers included for stowage of possessions, Stainless Steel Sink with Pressurised hot and cold water supplies, Electric Cooker with 4 plates, Combi Oven, Fridge Freezer, Air Conditioning System, 12 Suspension Seats with arm rests, head rests and lap belts, 6 with screens in front pedestal, Sound level 55db on suspended Wheelhouse.

Electronic Equipment:

Control System MAN Power Systems, Chart plotter Furuno Navnet 3D MFD12, Main Radar Furuno HD & Super HD Radar, Second Radar Furuno 1623 Radar, Anenometer ST60+ Wind & Close Hauled Wind Instrument, Compass Ritchie HF742 Satellite Compass, Hailer Raymarine RAY430 Load Hailer and Horn, Sar Equipment Sea Marshal, CCTV 7 Cameras powered Raymarine CAM 50, Speed Log Air Mar Ultrasonic Speed & Temp Sensor, Radio x2 VHF DSC, Inmarsat A2 Icom VHF Marine, Transceiver 1C-M33, Autopilot Simrad AP50 Auto Pilot.

Seafast Don Specification

Built: 2015
Builder/Model: Alicat workboats, Gt Yarmouth
Classification: MCA Category 2 Workboat
Capacity: 12 Pax and 3 Crew
Construction: Aluminium
Overall length: 23m
Beam: 7.36mm
Draft: 1.2m
Gross Tonnage: 40.10t
Sprint: 30 Knots at 480 Litres / Hour
Service speed: 25 Knots at 420 Litres / Hour
Cargo: 10 Tonnes
Deck load: 1.2 t/m2
Fuel: 10,500 Litres
Fresh Water: 1,000 Litres
Engines: x2 MAN, V12-1400
Max Power: Up to 2088kW (2800 hp)
Vessel Range: 575nm
Crane: HIAB arm crane PK6500m
Safety: MOB safety zones with Davit and Jason’s cradle to safely recover a casualty.
